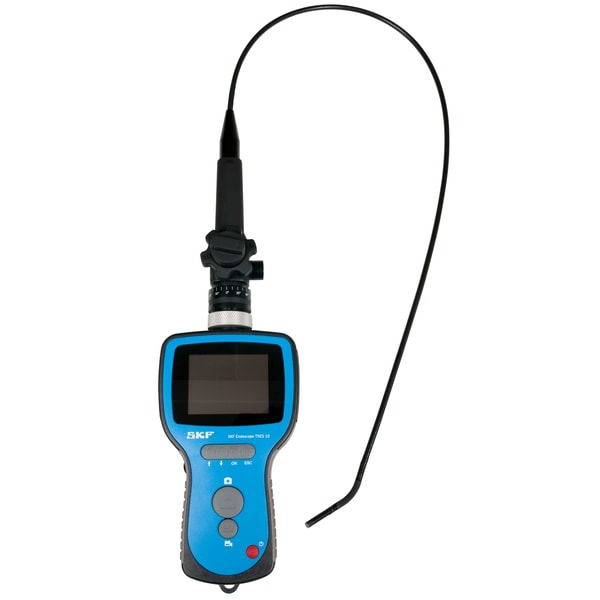

Video endoscope with articulated tip
The SKF Endoscope TKES 10A is a first line visual inspection tool to examine the internals of your machinery. It helps to reduce the need to disassemble machinery for inspection, saving time and money. The compact display unit, with 3.5 inch backlit screen, allows images and video to be saved for reporting and sharing with others. This model features an articulated tip with powerful variable LED lighting that can be controlled from the display unit, allowing inspections in dark and difficult to reach locations.
- eClass5ID:
- 23051901
- Verstellbarkeit:
- Flexibler Schlauch; Spitze 300° biegsam; Hals 330° drehbar
- Batterie:
- Rechargeable Li-Polymer Battery (3.7 V)
- Batterielebensdauer:
- 4 h
- Bending radius (min):
- 50 mm
- Koffermaße (L x H x B):
- 530 x 110 x 360 mm
- Farbe:
- Blue,Black
- Inhalt:
- Display (TKES 10-DU); Gebogener Einsteckschlauch 1 m (TKES TA-1); SD-Speicherkarte; Seitenansichtadapter 90° (TKES 1-M1); Kabel für S-Video; Netzteil und Ladegerät mit landesspezifischem Stecker (TKES 10-CHARG); Mini-USB-zu-USB-Kabel; Reinigungszubehör; Transportkoffer; Bedienungsanleitung;
- Display:
- 3,5“-TFT-LCD-Monitor mit 320 x 240 Pixeln
- Depth of Field:
- 20 mm
- Depth of Field max.:
- 60 mm
- Depth of Field:
- 0.787 in
- Depth of Field max.:
- 2.362 in
- Schutzart (IP):
- Tube: IP 67;Display device: IP 55
- Sichtfeld:
- 55 °
- Einsteckschlauch und Spitzendurchmesser:
- 5.8 mm
- Insertion Tube:
- Schlauch mit beweglicher Spitze
- Lichtquelle:
- 4x white LED with adjustable brightness
- Measurement method:
- CMOS
- Speicher:
- SD Card
- EAN:
- 7316575126308
- manufacturerSKU:
- TKES 10A
