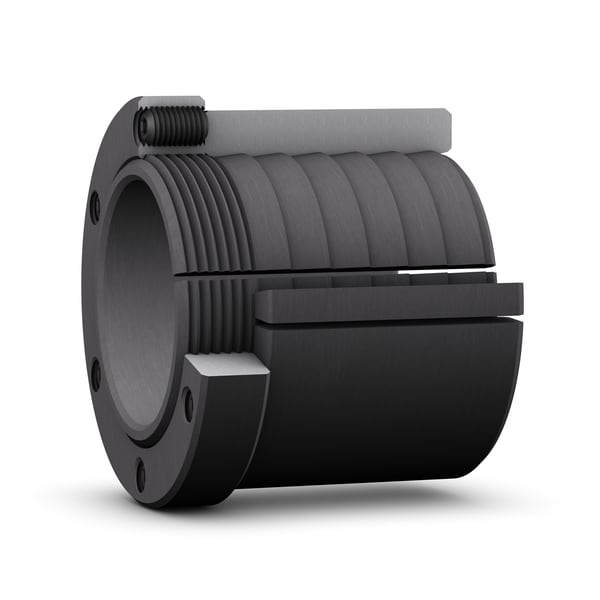

SH bushing
SH bushings are designed for heavy loads - for both torque and axial forces. SHR bushings, delivered with a non-slotted outer sleeve, are for use when welding components onto the bushing, e.g. a lever. SHT bushings, delivered with a slotted outer sleeve, lock the application by pressure and friction. SH bushings are entirely mechanical and have no temperature-sensitive hydraulic parts, so they can be used anywhere - even in extreme cold or heat.
- eClass5ID:
- 23051901
- Bohrungsdurchmesser:
- 60 mm
- Außendurchmesser:
- 92 mm
- Breite:
- 65 mm
- Breite, gesamt:
- 79.5 mm
- Bauform:
- geschlitzt
- Maximale Axialbelastung:
- 75 kN
- Bruttogewicht der Vepackung:
- 2.514
- Verpackungshöhe:
- 106 mm
- Verpackungslänge:
- 124 mm
- Verpackungsbreite:
- 125 mm
- Verpackungsvolumen:
- 1.643 dm³
- Nettogewicht des Produkts:
- 2.444 kg
- UNSPSCode:
- 31171605
- EAN:
- 7316577641410
- manufacturerSKU:
- SHT 60
