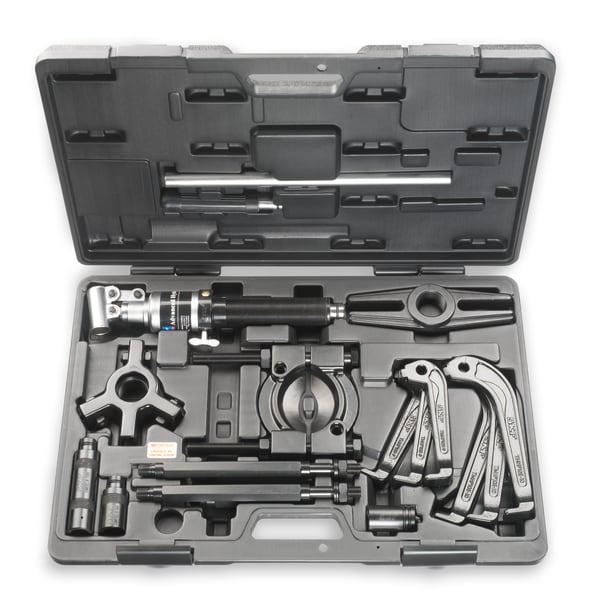

Hydraulic puller kit

Artikelnummer:TMHC 110E

EAN:7316572298442

Hersteller ID:TMHC 110E

The TMHC 110E is a hydraulic puller kit that combines a jaw puller and a strong back puller. The kit includes two arm sets with different lengths that can be used in 2-arm or 3-arm configuration and a back puller with a maximum reach of 250 mm (9.8 in.). The hydraulic spindle with safety valve enables safe and effortless dismounting for various bearings and components. The spring-loaded centre piece and self-locking puller arms further support safe and easy puller operation.

eClass5ID:: 23051901
Arms:: Set 1, TMHP 10E-9 with arm length 140 mm;Set 2, TMHP 10E-10 with arm length 190 mm
Suitable for bearing type(s):: Alle
Koffermaße (L x H x B):: 580 x 410 x 70 mm
Krallenhöhe:: 8 mm
Claw length:: 15 mm
Claw width:: 25 mm
Beschichtung:: Schwarzphosphatierte Hydraulikspindel mit Teilen aus dreiwertigem Chrom
Farbe:: Schwarz/Silber
Inhalt:: 1 x arm-assembly stand;3 x arms, set 1, TMHP10E-9;3 x arms, set 2, TMHP10E-10;1 x separator set;1 x beam;2 x main rods;2 x extension rods, 125 mm;1 x hydraulic spindle TMHS 100, with handle bar;2 x extension pieces for hydraulic spindle: 50, 100 mm;1 x nosepiece with centre point for hydraulic spindle;IFU;Case
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft):: Kein(e)
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft):: Ja
Dismounting force generation:: Hydraulische Spindel, TMHS 100
Suitable for workpiece dismounting from a Housing:: Kein(e)
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve):: Ja
Suitable for bearing dismounting from a Tapered seating (conical shaft):: Ja
Hydraulic spindle, piston stroke:: 80 mm
Separator height:: 25 mm
Werkstoff:: Legierte Baustähle, vergütet
Total number of arms in kit:: 2 Sätze mit je 3 Stück
EAN:: 7316572298442
manufacturerSKU:: TMHC 110E
